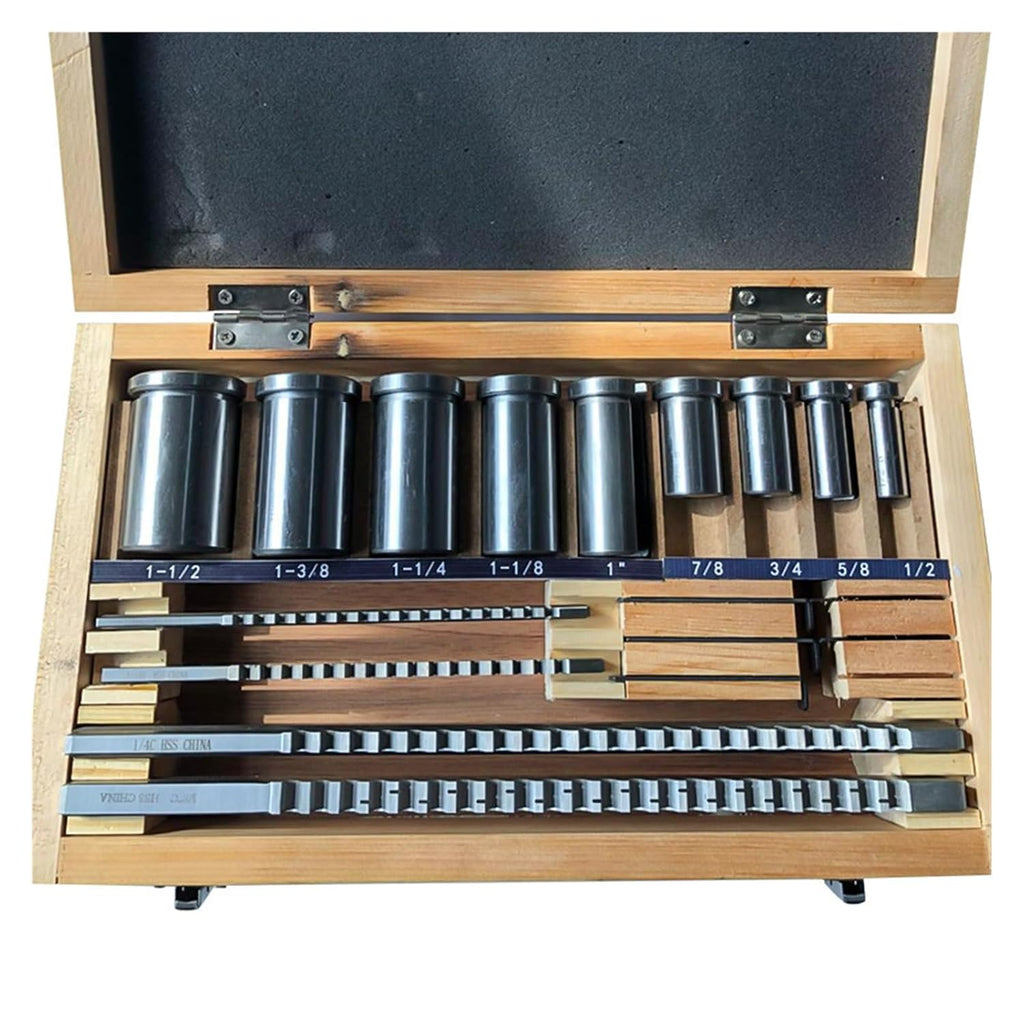

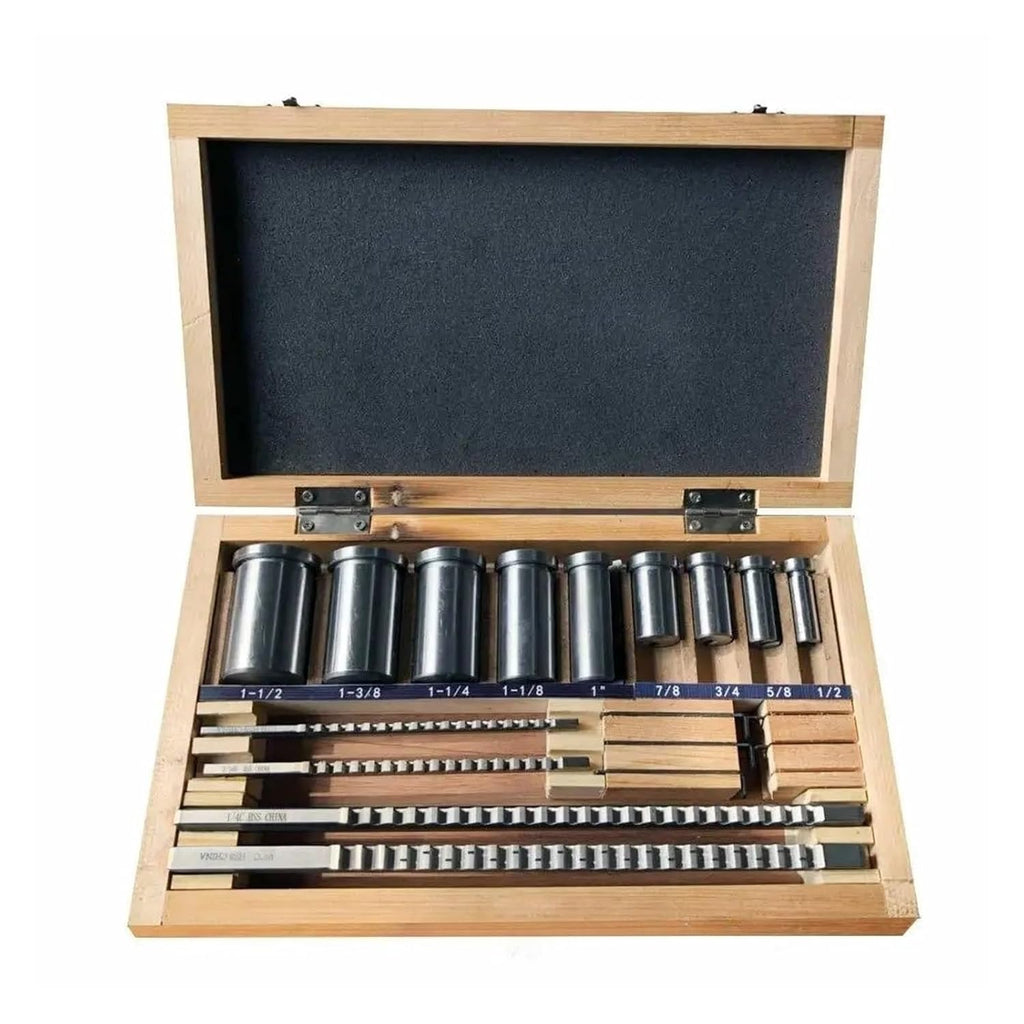

Keyway Broach Kit Inch Size HSS Keyway Broach Set 18pcs 4 Broaches 9 Collared Bushings 5 Shims Inch Industrial Tools for Lathe

18Pcs HSS Keyway Broach Set Inch Keyway Broach Keyway Broach Precision Sets Broach Set Tool for Cutting Keyways
Product Includes:
4pcs * Keyway
9pcs * collared bushings
5pcs * Shims
1 * Wooden case
Product Specification
Item #
18pcs INCH SIZE HSS Keyway Broach Set
Keyway Size
1/8', 3/16', 1/4', 3/8'
Broach Style
B, C
Bushing Diameters Bore Sizes
1/8'(B): 1/2', 5/8';
3/16'(B): 3/4', 7/8';
1/4'(C): 1', 1-1/8', 1-1/4';
3/8'(C): 1-3/8', 1-1/2' ;
Shim
5pcs
Keyway broach Specification
Broach Size
Keyway Width
Dimensions
Shims Required
Length of cut
Tolerances Dec. Equiv.
1/16'-A
1/16'
1/8'x5'
0
13/64'-1-1/8'
0.0625-0.0635
3/32'-A
3/32'
1/8'x5'
0
13/64'-1-1/8'
0.0938-0.0948
1/8'-A
1/8'
1/8'x5'
1
13/64'-1-1/8'
0.1252-0.1262
3/32'-B
3/32'
3/16'x6-3/4'
0
19/64'-1-11/16'
0.0938-0.0948
1/8'-B
1/8'
3/16'x6-3/4'
1
19/64'-1-11/16'
0.1252-0.1262
5/32'-B
5/32'
3/16'x6-3/4'
1
19/64'-1-11/16'
0.1564-0.1574
3/16'-B
3/16'
3/16'x6-3/4'
1
19/64'-1-11/16'
0.1877-0.1887
3/16'-C
3/16'
3/8'x11-3/4'
1
25/46'-2-1/2'
0.1877-0.1887
1/4'-C
1/4'
3/8'x11-3/4'
1
25/46'-2-1/2'
0.2502-0.2512
5/16'-C
5/16'
3/8'x11-3/4'
1
25/46'-2-1/2'
0.3127-0.3137
3/8'-C
3/8'
3/8'x11-3/4'
2
25/46'-2-1/2'
0.3755-0.3765
5/16'-D
5/16'
9/16'x13-7/8'
2
1-6'
0.3127-0.3137
3/8'-D
3/8'
9/16'x13-7/8'
2
1-6'
0.3755-0.3765
7/16'-D
7/16'
9/16'x13-7/8'
2
1-6'
0.438-0.439
1/2'-D
1/2'
9/16'x13-7/8'
3
1-6'
0.5006-0.5016
5/8'-E
5/8'
3/4'x15-1/2'
4
1-6'
0.626-0.627
3/4'-E
3/4'
3/4'x15-1/2'
5
1-6'
0.7515-0.7525
7/8'-F
7/8'
1'x20-1/4'
6
1-6'
0.8765-0.8775
1'-F
1'
1'x20-1/4'
7
1-6'
1.0015-1.002

Technical Details

• ASIN : ‎B0G37WFFKJ
• Date First Available : ‎November 21, 2025
• Item Weight : ‎9.48 pounds
• Manufacturer : ‎BAISULI
• Package Dimensions : ‎0.39 x 0.39 x 0.39 inches
