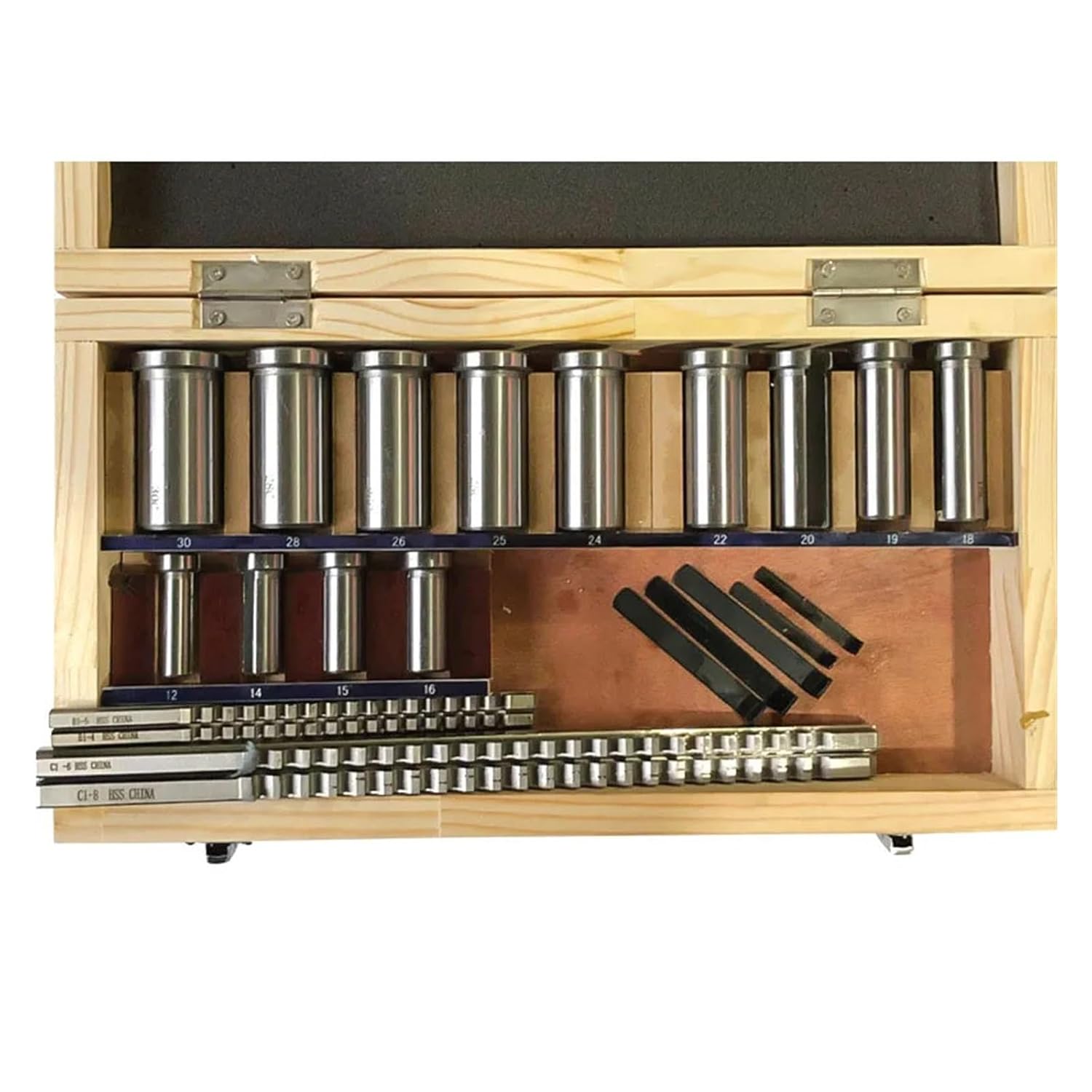

Keyway Broach Kit 22pcs Keyway Broach Set HSS Metric Keyway Cutting Tool for CNC Machine Precision

22pcs Keyway Broaches Set HSS Metric Keyway Cutting Tool for CNC Machine
Feature:
1.Details of the Tool: 4 models of broaches, are B1-4, B1-5, C1-6, C1-8; 13 catheters are 12B, 14B, 15B, 16B, 18C, 19C, 20C, 22C, 24C, 25C, 26C, 28C, 30C; 5 separators, 2 of which level B and 3 of C.

Specification:
- 4broaches & 13 catheters 5shims 22 combinations
4 broaches B14B15,C1-6,C1-8
- 13 catheter: 12B,14B,15B,16B,18C,19C,20C,22C,24C,25C,26C,28C,30C
- 5 shims: 2 of which level B and 3 of C
- Package size:360cm*190cm*70cm
- Weight: 4.3kg
Broches:
B1 - 4: height: 10.8 mm; Reading height: 9.66 mm; width of sword: 6.45 mm; total length 171.5 mm; key groove width (mm): b = 4.01 mm
B1 - 5: height: 10.8 mm; Reading height: 9.66 mm; width of sword: 6.45 mm; total length 171.5 mm; key groove width (mm): b = 5.01 mm
C1 - 6: Height: 16.64 mm; Reading height: 15.02 mm; Sword width: 9.64 mm; Total length 298.5 mm; Key groove width (mm): b = 6.01 mm
C1-8: Height: 15.95 mm; Reading height: 14.62 mm; Sword width: 9.64 mm; Total length 298.5 mm; Key groove width (mm): b = 8.01 mm
Package List:
4pcs * Broaches
13pcs * Catheters
5pcs * Shims
1 * Wood case

Item details

• ASIN : B0G2L39P3V
• Brand Name : BAISULI
• Manufacturer : BAISULI
• Model : BAISULI
• Part Number : BAISULI
